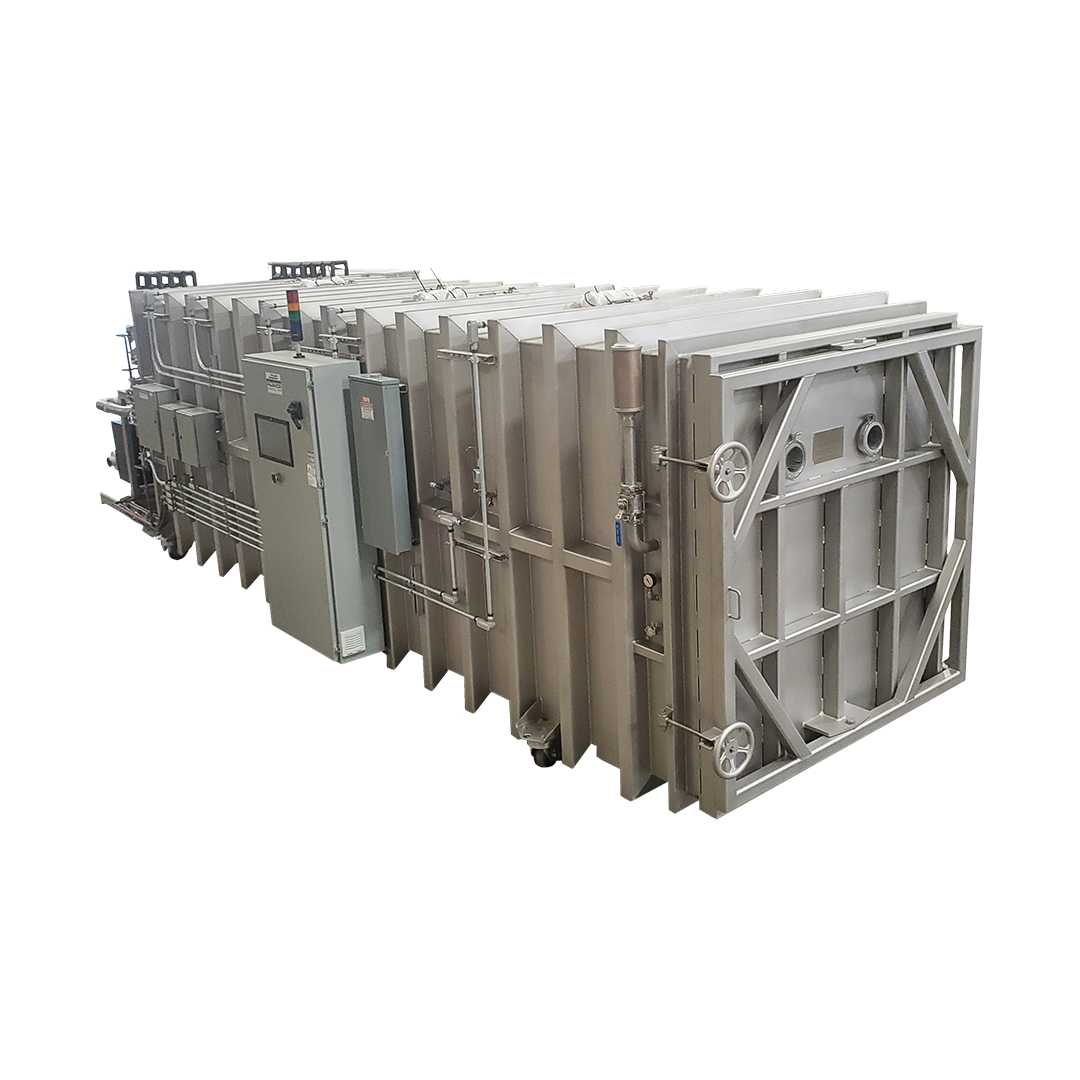

Parker 10R Freeze Drying Machine

WET VOLUME 2500 LBS

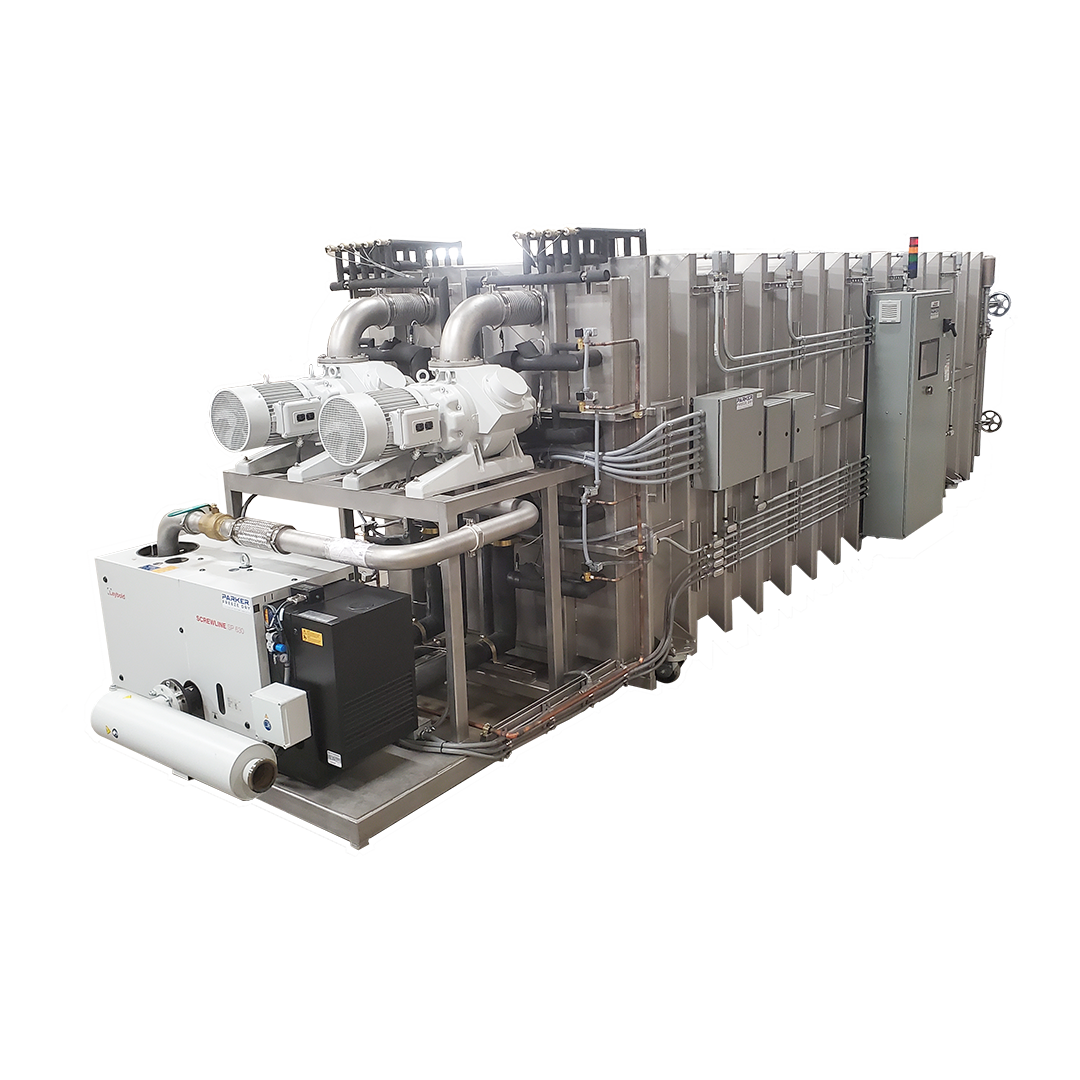

The Parker 10R freeze dryer has the same capacity as the Parker 10 model but adds a secondary booster pump to assist with deeper more consistent vacuum. It also utilizes double the cold plates on the interior of the chamber increasing the ratio of cold plate area to product surface area.



Parker 10R Freeze Dryer
Parker 10R Freeze Dryer
Parker 10R Freeze Dryer
Parker 10R Freeze Dryer
PARKER 10R FREEZE DRYER

Features

PARKER 10R FREEZE DRYER

Maintenance

  • Stainless steel vacuum chamber
  • Easy to operate controls
  • Aluminum carts for maximum heat exchange efficiency
  • Deep vacuum system with less frequent maintenance and repairs
  • Industry grade condenser unit designed specifically for PFD
  • High ratio of cold plate surface to capacity for quality freeze drying
  • Remote access for monitoring & troubleshooting
  • Service & wear items in stock via exclusive e-commerce store
  • Provided with comprehensive guide for maintenance intervals
  • Exclusive access to Parker University for continuing education
  • Guidance on daily, weekly, monthly, semi and annual inspections
NSF
Product Specification
Description: Imperial: Metric:
Cart Capacity 10 10
Chamber Dimension (Door Open) 367L x 97W x 98H Inches 933L x 247W x 249H cm
Refrigeration Condenser Skid Heatcraft Magna Heatcraft Magna
Refrigeration Condenser Skid Dimensions 230L x 50W x 60H 585L x 224W x 153H cm
Pan Dimension 26L x 18W x 1H Inches 67L x 46W x 3H cm
Maximum Heated Product Pans 420 420
Maximum Shelf Area 1365 Sq. Ft.  126.8 Sq m
Shelf Temp Range -50 to 180 F -45 to 82 C
Maximum Vacuum ≤ 0.01 mbar ≤ 0.01 mbar
Median Weight Capacity 2500 lbs + 1134 kg +
Ice Condenser Capacity 9596 lbs 4352 kg
Chamber Standard Operating (dB) >=85 85
Condenser Operating (dB) >=85 85
Power Requirements 480V 3 Phase 480V 3 Phase
Suction Temp -60 F -51 C
Typical Max Power Usage 215 FLA  215 FLA



PRODUCT CALCULATOR

More Product. More Profit.

Enter some business metrics to find out the Parker Freeze Dry unit that suits your needs, and your estimated gross margin per pound.

Customer Support

We have a dedicated team of freeze dry experts ready to help you succeed. When you request a consultation, you are guaranteed to find the best solution for your operation.

Parker University

Exclusive content is available for operators covering maintenance, cleaning, continuing education, parts and service. Subscribe and save with automated shipping of required maintenance items at recommended intervals.
